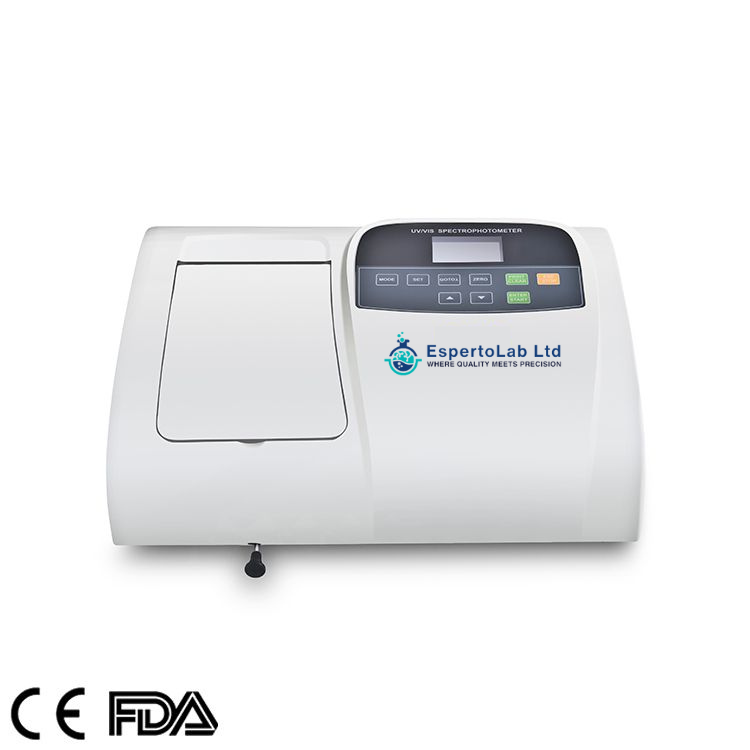

UV VIS Spectrophotometer, Single Beam, SP-MUV5100

SP-MUV5100 Spectrophotometer

2.5-inch LCD Screen
Features a clear 2.5-inch LCD display, allowing easy viewing of standard curves and multiple result sets.
Standard Curve Setup
Enables the creation of various standard curves based on specific solutions, providing accurate concentration readings for unknown samples.
Imported Deuterium Lamp
Equipped with a high-quality imported deuterium lamp, ensuring low stray light and high photometric accuracy. The lamp is also designed for easy replacement.
Data Output
Comes with a USB port for seamless connection to a PC, allowing spectrum scanning, kinetics, and multi-wavelength test results to be displayed on the computer. Optional software is available.
Multiple Result Readouts
Displays wavelength, absorbance, and transmittance with up to 5 results per screen, and has a memory capacity to store up to 200 results.
Automatic Wavelength Setting
Users can set the wavelength easily with arrow keys, reducing the risk of operational errors.

Model	SP-MUV5100
Optical System	Single beam, Grating 1200 lines/mm
Wavelength Range	190-1000nm
Bandwidth	2nm
Wavelength Accuracy	±2nm
Wavelength Repeatability	0.5nm
Wavelength Setting	Auto
Photometric Accuracy	±0.5%T
Photometric Repeatability	≤0.2%T
Photometric Range	-0.3-3A,0-200%T,0-9999C
Photometric Mode	T,A,C,F
Stray Light	≤0.1%T
Stability	± 0.002A/h @ 500nm
Display	128*64 LCD
Detector	Silicon Photodiode
Light Source	Tungsten Lamp&Deuterium Lamp
Output	USB & Parallel Port(Printer)
Power Requirements	AC 85~250V
Dimension	420280180mm
Weight	12kg
