- Horizontal Forced Air Type: Ensures good temperature uniformity.
- Microprocessor Controller: Provides accurate and reliable control with temperature correction and timing functions.
- Large LCD Screen: For clear and easy monitoring.
- High-Quality Stainless Steel Chamber: Durable and easy to clean with a removable shelf.
- Multiple Heaters: Equipped with multiple sets of heaters (specific to DOF-HB Series).
- Temperature Selection Switch: Allows selection of heating speed and operating temperature (specific to DOF-HB Series).
- Silicon Sealing Ring: Ensures reliable sealing.
- Auxiliary Temperature Control: Dual temperature control system for enhanced accuracy and stability, ensuring normal operation even if the main controller fails.
- Leakage Protection: Automatically cuts off power in case of leakage, protecting personnel and other equipment in the laboratory.
- Optional Printer or RS485 Interface: For printing or connecting to a computer for remote control and alarm.
- Anti-Hot Handle: Designed for safe handling.
Laboratory Equipment

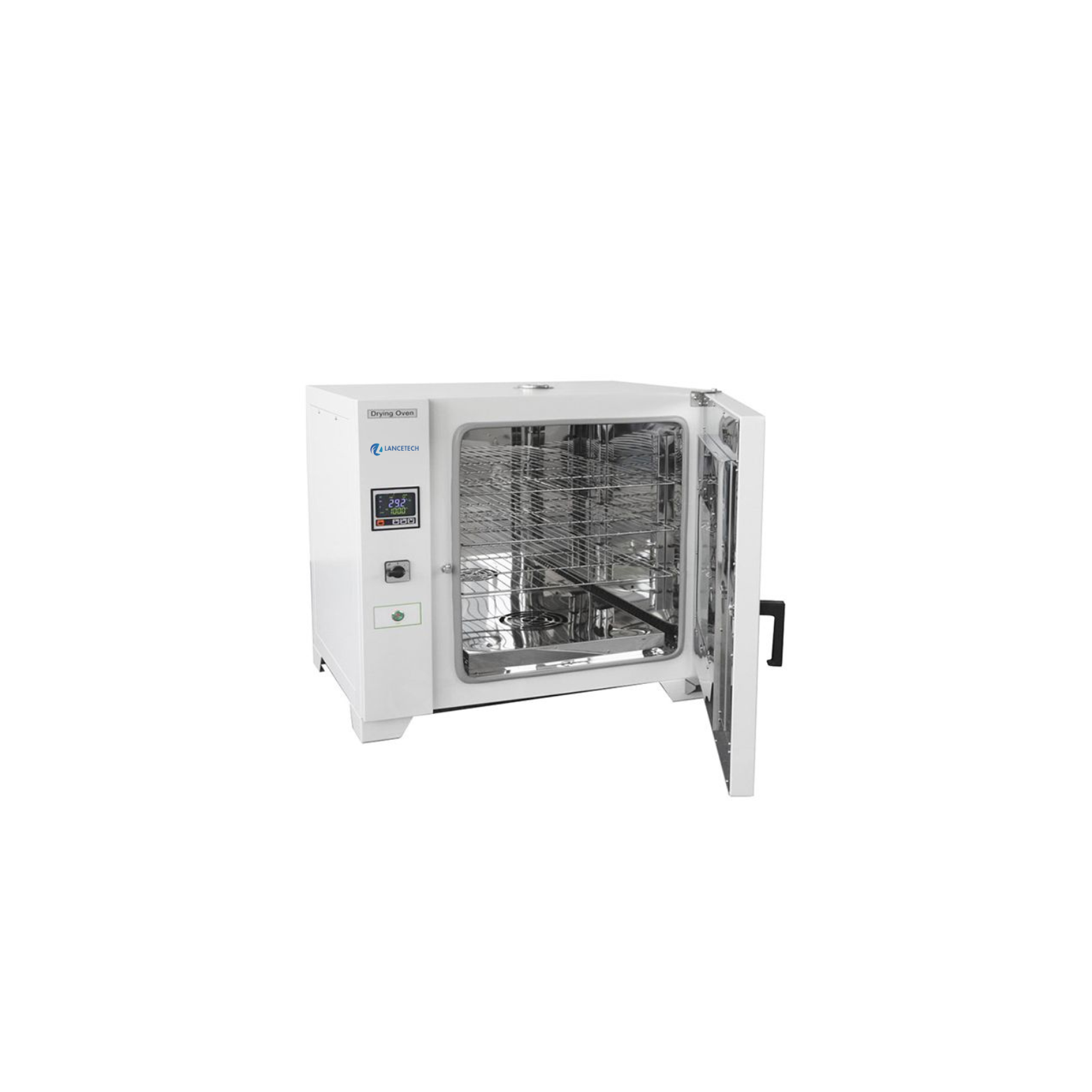

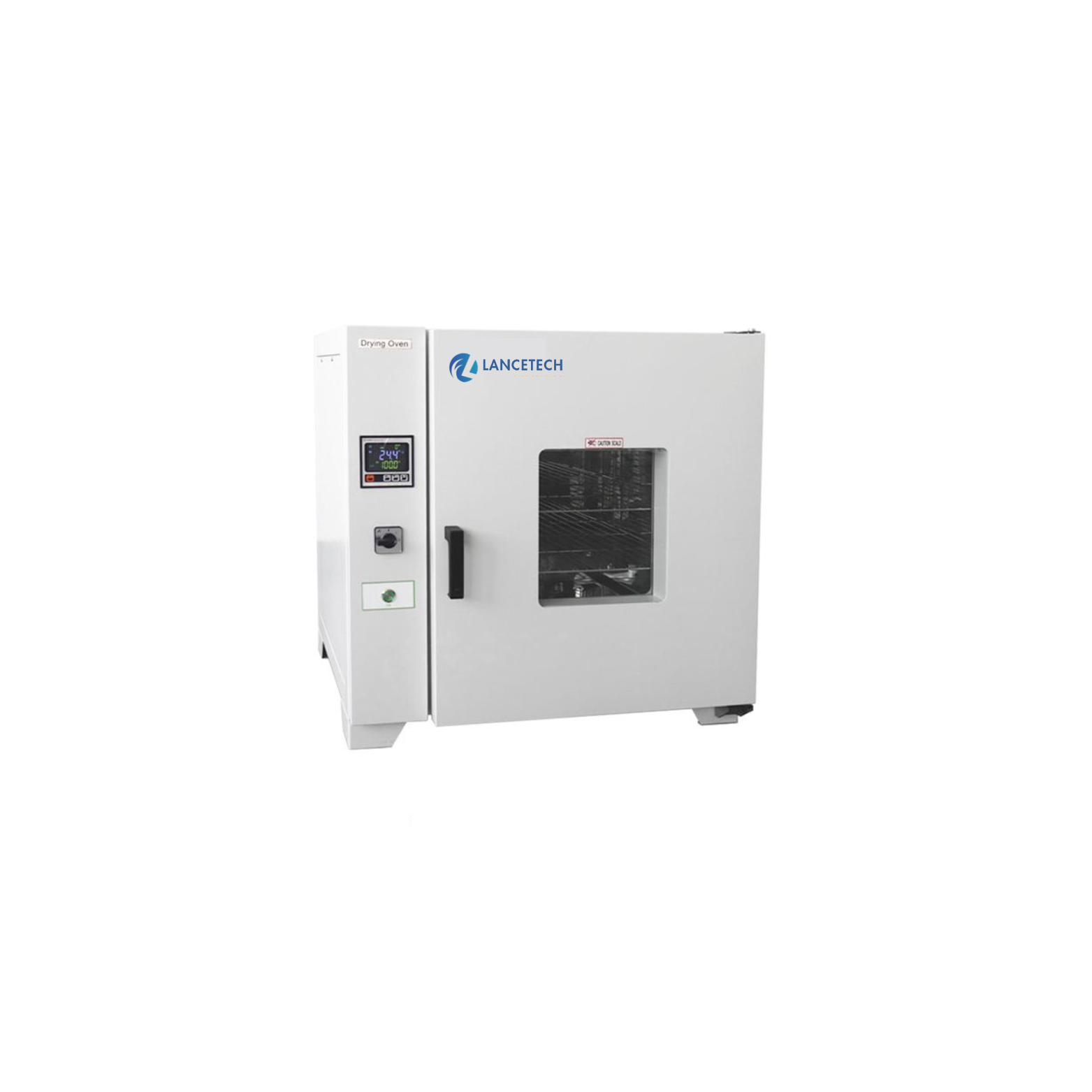

Forced Air Drying Oven DOF-P102-Q
- Volume: 138L, 252L, 640L, 960L
2.Temp.Range(℃): RT+10～200; RT+10～300
3.Shelf: 3/7, 3/10, 4/15, 5/18
4.Auxiliary temp. control
5.Leakage protection
| Capacity(L) | 138 |
|---|---|
| Circulation Mode | Forced convection |
| Dimension(W*D*H) | Internal (mm) 500*500*550 |
| Temperature | Range (℃) RT+10~200（DOF-H140-A：RT+10~300） |
| Controller | Microcomputer |
| Display | High definition LCD |
| Timer | 1~9999min |
| Material | Internal Mirror stainless steel |
| Shelves(Standard / Max ) | 3/7 |
| Safety Device | Over temperature visible& audible alarm ,leakage protector, spare temperature control |
| Electricity | Voltage/Frequency AC 220/110V, 50/60Hz |
| N.W./G.W. (kg) | 80/115 |
| Package Dimension (W*D*H)(mm) | 900*760*980 |
| Optional Spare shelf | RS485 port,,built-in printer,multi-segment programable control |
